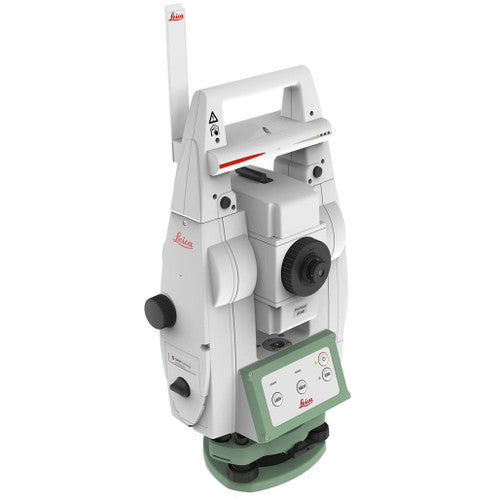

Leica TS13 Robotic Total Station

Leica TS13 5" R500 Robotic Total Station Package

The Leica TS13 is a scalable mid-range robotic total station for professional surveying and construction layout. This G2 Survey package is configured as a 5" instrument with R500 reflectorless measurement, Automatic Target Recognition (ATR), prism lock and robotic functionality, paired with a Leica CS20 LTE field controller and Leica Captivate software.

Package Configuration

• Leica TS13 5" R500 Total Station with ATR and AutoHeight
• TS13 Prism Lock and Robotic options
• Leica RH18 Bluetooth radio handle
• Leica GTS46 LOC8
• Leica GDF321 tribrach
• 2 × Leica GEB223 Li-Ion batteries
• Leica GVP725 TS robotic container

CS20 Field Controller Package

• Leica CS20 LTE field controller
• 2 × Leica GEB334 Li-Ion batteries
• MSD1000 1 GB SD memory card
• GHT63 pole clamp, GHT66 holder plate, GHT67 hand strap and GHT68 utility hook
• Leica GVP724 container

Included Accessories & Software

• Leica GKL341 multi charger
• Leica GRZ4 360° reflector
• Leica GLS12 reflector pole
• Leica GST20-9 heavy-duty wooden tripod
• Leica Captivate Base (Measure & Stakeout for TS/MS and CS)
• Leica Captivate Worksite+ for CS20
• 3-year Leica Viva TPS (TS13) Basic Customer Care Package

Key Capabilities

AutoHeight automatically measures instrument height to reduce manual setup error. ATR supports automatic target aiming, while the robotic configuration enables remote operation with the CS20. The TS13 is designed as an upgradeable platform and is compatible with Leica Captivate workflows and the Leica AP20 AutoPole.

Configuration: 5" angular accuracy / R500 reflectorless range.
HexX SKU: 6016623.
