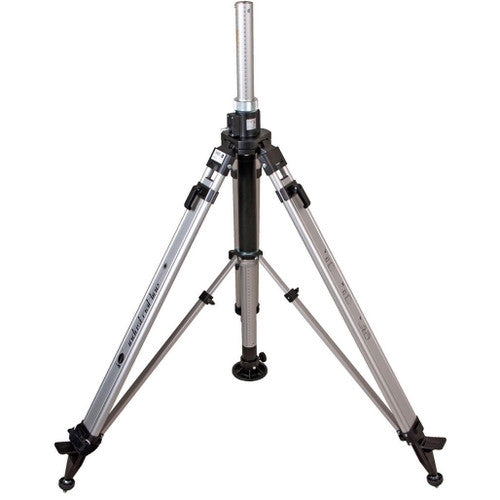

Nedo Laser Scanner Two Way Tripod

Nedo Laser Scanner Two Way Tripod

by Nedo
£995.00

Notify me when back in stock

Nedo Laser Scanner Two Way Tripod

The Nedo Industrial Line two-way elevating tripod is designed specifically for 3D laser-scanner positioning. Its reversible elevating arrangement allows a compatible scanner to be used above the tripod or lowered below it for shaft and below-level capture.

Key Specifications

  • Approximate working height: 1.12 m to 5.00 m
  • Approximate shaft depth capability: 4.00 m
  • Retracted length: approx. 1.21 m
  • 5/8" holding screw and 3/8" tripod adapter
  • Approximate weight: 8.9 kg
  • Twist-resistant elevating column with centric clamp
  • Can be raised using the hand crank or supplied drive-bit arrangement with a suitable cordless drill

Supplied Equipment

Tripod with basic elevating section, four additional 1 m rack elements, hand crank, drive-bit accessories, adapter, combi shoes and transport equipment as specified by Nedo.

Condition: New
SKU: 210710

Description

Nedo Laser Scanner Two Way Tripod

The Nedo Industrial Line two-way elevating tripod is designed specifically for 3D laser-scanner positioning. Its reversible elevating arrangement allows a compatible scanner to be used above the tripod or lowered below it for shaft and below-level capture.

Key Specifications

  • Approximate working height: 1.12 m to 5.00 m
  • Approximate shaft depth capability: 4.00 m
  • Retracted length: approx. 1.21 m
  • 5/8" holding screw and 3/8" tripod adapter
  • Approximate weight: 8.9 kg
  • Twist-resistant elevating column with centric clamp
  • Can be raised using the hand crank or supplied drive-bit arrangement with a suitable cordless drill

Supplied Equipment

Tripod with basic elevating section, four additional 1 m rack elements, hand crank, drive-bit accessories, adapter, combi shoes and transport equipment as specified by Nedo.

Condition: New
SKU: 210710
